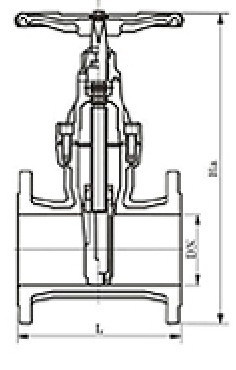

Resilient Seated Gate Valve
Short Description:
Product name:Resilient Seated Gate Valve
Size:2″-24″
Rating:1.0Mpa,1.6Mpa,2.5Mpa.
Material:WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc
Connection:Flanged , Spigot , Socket , Mechanical Joint , Grooved and Shoulder
Operate:Handwheel,, Gearbox, Pneumatic Actuator,
Product name:Resilient Seated Gate Valve
Feature:
1.Straight thorugh bore
2.OS&Y Outside Screw and Yoke
3.Rising stem or Non-rising stem
4.Vulcanized encapsulated resilient wedge,bubble tight shut-off,low head and loss cost,saving feature is replaceable wedge without taking the valve out from the pipeline.
5.Suitable medium:potable water,waste water and suitable for all types of water and air
6.Working temperature: NBR≤80, EPDM≤120
7.Special accessories like by-pass unit,valve locking device,tapped bosses,pipe cover,indicator and limit switches are also available.
Standard:
1.Design and Manufacture:DIN3352,BS5163
2.Face to face(end to end):ANSI B16.10,BS5163,DIN3202 F4 & F5
3.End Connection: DIN2501,BS4504
