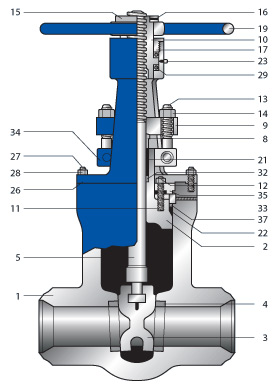

Pressure Seal Gate Valve

Short Description:

  • Product name: Pressure Seal Gate Valve

    Size: DN15-1500

    Rating: Class150-2500

    Material:WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 904l,Hastelloy C etc

    Connection: RF, RTJ, BW

    Working Temperature: -29℃~+560℃

    Operation: Hand wheel, Gear box, etc

    Medium: Water,Oil,Gas




  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Product name: Pressure Seal Gate Valve

    Pressure Seal Gate Valve supplier

    Feature:

    1.OS&Y Outside Screw and Yoke

    2.Pressure Seat Bonnet

    3.Threaded or welded seat ring

    4.Solid, Flexible or Split Wedge Design

    5.Back-seating, Renewable Seat Ring

    6.Full Port Or Reduced Bore

    7.Fully Guiding,Flexible Wedge

    8.Optional Upset Forged T-head Stem Design

    9.MR 0175 and MR 103 on request

    10.One Piece

    11.Seat Surface Hardface STL

    Standard:

    1.Design and Manufacture: API 600,BS1414,DIN 3352, ANSI B16.34, API603 API6D

    2.Pressure-temperature rating: ASME B16.34

    3.Face to face(end to end): ASME B16.10,DIN 3202, BS EN558, API6D

    4.End Connection: 2″-24″ASME B16.5;26″ -42″ ASME B16.47;B.W end ASME B16.25,DIN 2501

    5.Test and inspection: ISO5208,API 6D, API598

    Standard:

    1.Design and Manufacture: API 600,BS1414,DIN 3352, ANSI B16.34, API603 API6D

    2.Pressure-temperature rating: ASME B16.34

    3.Face to face(end to end): ASME B16.10,DIN 3202, BS EN558, API6D

    4.End Connection: 2″-24″ASME B16.5;26″ -42″ ASME B16.47;B.W end ASME B16.25,DIN 2501

    5.Test and inspection: ISO5208,API 6D, API598
